Shaft for Circular Saw (Circular Saw/Bench saw) on Self-Aligning Bearings

Brand: forsplit®

Model: ZPU-250-30-L

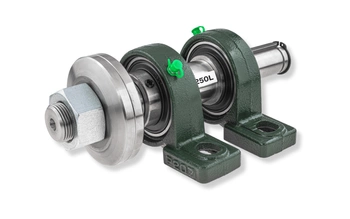

The item for sale is a Circular Saw Kit based on two self-aligning bearings UCP207. The shaft has a length of 250mm, an outlet for a circular saw of 30mm secured with a nut M30x2 (left-hand thread) and two saw clamps with a diameter of 90mm.

The outlet for the pulley has a diameter of 28mm / keyway 8mm - fits pulleys 2x13mm or 2x17mm, secured with a snap ring!

The presented set has been developed based on experience and entirely manufactured in our company from certified materials, ensuring many years of trouble-free operation.

What are the advantages of our product:

✅ The design is based on self-aligning bearings, allowing for adaptation to uneven bases,

✅ Buy directly from a POLISH MANUFACTURER, without intermediaries!

✅ All turned and milled parts are manufactured in our company by POLISH employees under strict quality control - by purchasing our set, you support the Polish economy,

✅ Very good quality-to-price ratio.

➡️ Technical Specifications

Set [ZPU-250-30-L]:

✔️ Total length: 250mm

✔️ Diameter for circular saw: fi 30mm

✔️ Diameter for pulley: fi 28mm

✔️ Clamp diameter: fi 90mm

✔️ Clamping nut: M30x2 / left-hand thread

✔️ Mounting hole spacing: 70x127mm

Shaft [WP-250-30-L]:

✔️ Material grade: Experimentally selected HIGH-STRENGTH CHROME STEEL ⭐⭐⭐⭐⭐

✔️ Shaft length: 250mm (we offer shafts in lengths: 250, 300, 350, 400, 450, 500)

✔️ Diameter for circular saw: fi 30mm

✔️ Diameter for pulley: fi 28mm

✔️ Diameter for bearings: fi 35mm

✔️ Thread: M30x2 left-hand

Bearings [UCP207]:

✔️ Diameter of shaft hole: 35mm

✔️ Bearing height: 93mm

✔️ Hole spacing: 127mm (adjustment 3mm)

✔️ Hole diameter: fi 17mm

Pulley:

Our offer includes pulleys: 2x13mm or 2x17mm with diameters from 60-250mm.

Clients typically choose a 2x17mm pulley with a diameter of 90mm [2X17-090-28].

To find the appropriate pulley - Click "All seller's items" and enter in the search e.g. "2X17-090-28" (where: 2X17 means two 17mm belts, 090 means wheel diameter, 28 means shaft diameter).

➡️ Why Our Bench Saws Are Most Preferred

⭐ Directly from the Manufacturer ⭐

✅ Well-Known Polish Product: We have been assisting our clients in wood processing since 2008.❗ Statistics show that within a 10km radius of any point on the map, at least 5 of our wood processing machines are in operation! See the map alongside >

✅ An Investment for Years: Set designed and manufactured in Poland, from top-quality materials by experts you can trust.

✅ You support the Polish economy: Our products are entirely turned and milled in a Polish company with materials sourced from Europe.

⭐ High-Quality Craftsmanship ⭐

✅ Modern Production: Our company uses the latest technologies and machines. We operate in accordance with ISO 9001 Quality Policy, ensuring you receive a product of the highest quality.

✅ Durable Materials: Experimentally selected high-strength chrome steel makes our product extremely efficient and durable.

✅ Complete Satisfaction: We are confident in our products, which is why we guarantee 100% satisfaction or your money back!

⭐ Sturdy Construction ⭐

✅ Steel Hub: Bearings mounted in a thick-walled steel hub, providing you with reliability and many years of trouble-free work.

✅ Reliable Durability: Properly selected chrome steel withstands intensive use, giving you a longer tool lifespan.

⭐ Cost-Effectiveness ⭐

✅ You Save Money: Purchase directly, without intermediaries, at the best market price; our product is an excellent investment.

✅ Low Operating Costs: In case of potential damage, you only replace the specific part, greatly reducing operating costs.

✅ Available Parts: Spare parts are readily available, ensuring work continuity without unnecessary downtime.

Join our satisfied customers and enjoy effective, reliable work for many years.

We ship our products worldwide!

➡️ Customer Reviews

✴️ "Outstanding. Solid, heavy-duty, replaceable screw tip. Guarantees 100% satisfaction. Highly recommend."

✴️ "One of the most sensible expenditures in my life. With proper technique, I was splitting logs with a diameter of 90 cm."

✴️ "The splitter is very well made and performs very well; it handles stumps up to 40cm in diameter without any problem, so I recommend the purchase."

✴️ "Top-notch craftsmanship, assembled it all, tried it out, and put the axe aside."

✴️ "Super quality and craftsmanship. Very well packed and secured."

➡️ FAQ - Frequently Asked Questions

❓ 1. When to choose a shaft with a left-hand thread and when with a right-hand thread?

• Choose a left-hand thread if the circular saw is to rotate clockwise (looking from the nut side).
• Choose a right-hand thread if the circular saw is to rotate counterclockwise (looking from the nut side).

This ensures the nut will tighten itself, preventing loosening during operation.

❓ 2. What should the linear speed of the circular saw be?

The recommended linear speed for circular saws for cutting wood depends on the type of wood (dry or fresh) and the specifications of the blade. Generally accepted values are:

1. Cutting dry wood:Linear speed: from 50 m/s to 100 m/sHigher speeds (closer to 100 m/s) are preferred for larger diameter saws and more precise cuts. This facilitates achieving a smooth cut surface and increases work efficiency.
2. Cutting fresh wood (wet):Linear speed: from 40 m/s to 70 m/sSpeeds are slightly lower because fresh wood is softer and stickier. Working at lower speeds reduces the risk of jamming, overheating, and blade clogging due to resin and moisture.

These speeds may vary depending on the type of machine, blade material, number of teeth, and tooth shape. It is also important to follow the recommendations of the circular saw and machine manufacturer to ensure safe and efficient cutting.

❓ 3. How to select pulleys for a bench saw?

Depending on the diameter of the circular saw (including recommended revolutions) and the revolutions of the electric motor - the configuration of the wheels may vary. Below are some of the most popular configurations for an average linear speed of 55m/s:

Motor 1440 RPM:

• Saw 200mm 5250RPM / Recommended pulleys (Bench saw/Motor): 90/330 mm or 80/300 mm
• Saw 300mm 3500RPM / Recommended pulleys (Bench saw/Motor): 90/220 mm or 80/200 mm
• Saw 400mm 2630RPM / Recommended pulleys (Bench saw/Motor): 90/160 mm or 80/150 mm
• Saw 500mm 2100RPM / Recommended pulleys (Bench saw/Motor): 90/130 mm or 80/120 mm
• Saw 600mm 1750RPM / Recommended pulleys (Bench saw/Motor): 90/110 mm or 80/100 mm
• Saw 700mm 1500RPM / Recommended pulleys (Bench saw/Motor): 90/90 mm or 80/80 mm

Motor 2880 RPM:

• Saw 200mm 5000RPM / Recommended pulleys (Bench saw/Motor): 80/150 mm or 90/160 mm
• Saw 300mm 3300RPM / Recommended pulleys (Bench saw/Motor): 80/100 mm or 90/110 mm
• Saw 400mm 2500RPM / Recommended pulleys (Bench saw/Motor): 90/80 mm or 100/90 mm
• Saw 500mm 2000RPM / Recommended pulleys (Bench saw/Motor): 110/80 mm or 120/90 mm
• Saw 600mm 1700RPM / Recommended pulleys (Bench saw/Motor): 130/80 mm or 150/90 mm
• Saw 700mm 1400RPM / Recommended pulleys (Bench saw/Motor): 150/80 mm or 170/90 mm

To find the appropriate pulley in our offer - Click "All seller's items" and enter in the search e.g. "2X17-090-28" (where: 2X17 means two 17mm belts, 090 means wheel diameter, 28 means shaft diameter). Our offer includes pulleys: 2x13mm or 2x17mm with diameters from 60-200mm.

If you are unsure, we are happy to help you choose the right set.

➡️ Additional Information

We continually offer all parts to build a circular saw/bench saw, such as:

• Shafts: 250 / 300 / 350 / 400 / 450 / 500
• Pulleys: 60 / 70 / 80 / 90 / 100 / 110 / 120 / 130 / 140 / 150 / 160 / 170 / 180 / 190 / 200 / 250 mm
• Bearings
• Clamps
• Nuts
• Circular saws
• Accessories

❗WE ENSURE A CONSTANT SUPPLY OF SPARE PARTS❗
