Shaft for Circular Saw (Saw Bench / Table Saw) on Steel Hub

Brand: forsplit®

Model: ZPP-400-30-P

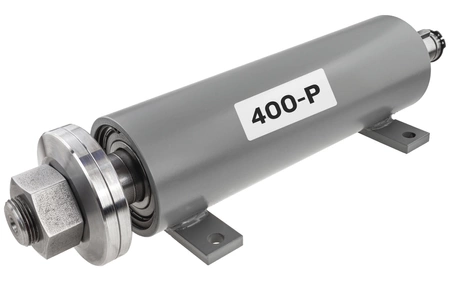

The item for sale is a Circular Saw Set featuring a steel hub made from thick-walled tubing and bearings 6207ZZ. The shaft is 400mm long, with an output for a circular saw blade of 30mm secured with a nut M30x2 (right-hand thread) and two blade clamps with a diameter of 90mm.

The output for the pulley is 28mm / with an 8mm keyway - compatible with pulleys 2x13mm or 2x17mm, secured with a circlip!

The presented set was developed based on experience and entirely manufactured in our company from certified materials, ensuring years of fault-free operation.

Advantages of our product:

✅ Hub construction made from thick-walled tubing, based on RELIABLE proven bearings,

✅ Buy directly from a POLISH MANUFACTURER, no intermediaries!

✅ All machined and milled components are manufactured in our company by POLISH workers under strict quality control - by purchasing our set, you support the Polish economy,

✅ Very good quality-to-price ratio.

➡️ Technical Specifications

Set [ZPP-400-30-P]:

✔️ Total Length: 400mm

✔️ Diameter for circular saw blade: fi 30mm

✔️ Diameter for pulley: fi 28mm

✔️ Clamp Diameter: fi 90mm

✔️ Locknut: M30x2 / right-hand thread

✔️ Mounting Hole Spacing: 200x100mm

Shaft [WP-400-30-P]:

✔️ Material Grade: Experimentally Selected CHROME STEEL with high strength ⭐⭐⭐⭐⭐

✔️ Shaft Length: 400mm (we offer shafts in lengths: 250, 300, 350, 400, 450, 500)

✔️ Diameter for circular saw blade: fi 30mm

✔️ Diameter for pulley: fi 28mm

✔️ Diameter for bearings: fi 35mm

✔️ Thread: M30x2 right

Hub:

• Housing Length: 270mm with two solid bearings 6207ZZ built-in,
• Housing Diameter: fi 82mm
• Housing Height: 88mm

Pulley:

In our offer, you will find pulleys: 2x13mm or 2x17mm with diameters from 60-250mm.

Customers typically choose a 2x17mm pulley with a diameter of 90mm [2X17-090-28].

To find the right pulley - Click on "All items of the seller" and type into the search engine for example "2X17-090-28" (where: 2X17 refers to two 17mm belts, 090 refers to the wheel diameter, 28 refers to the shaft diameter).

➡️ Why Our Saw Benches are Most Preferred

⭐ Directly from the manufacturer ⭐

✅ Well-known Polish Product: We have been assisting our Clients in wood processing since 2008❗ Statistics show that within a radius of 10km from any point on the map, at least 5 of our wood processing devices are in operation! See the map next >

✅ An investment for years: Set designed and manufactured in Poland, using the highest quality materials, by experts you can trust.

✅ Supporting the Polish economy: Our products are entirely machined and milled in a Polish company from European materials.

⭐ High Quality Manufacturing ⭐

✅ Modern production: Our company uses the latest technologies and machines. We operate in accordance with the ISO 9001 Quality Policy, ensuring you receive a product of the highest quality.

✅ Durable materials: Experimentally selected high-strength chrome steel ensures our product is extremely efficient and durable.

✅ Complete satisfaction: We are confident in our products, thus we guarantee 100% satisfaction or your money back!

⭐ Solid Construction ⭐

✅ Steel Hub: Bearings embedded in a steel hub made from thick-walled tubing, ensuring reliability and years of fault-free operation.

✅ Unmatched Durability: Appropriately selected chrome steel withstands intensive use, extending the tool's lifespan.

⭐ Cost-effectiveness ⭐

✅ Save money: Buy without intermediaries at the best market price, our product is an excellent investment.

✅ Low operating costs: In case of potential damage, only replace the specific component, significantly reducing maintenance costs.

✅ Available parts: Spare parts are readily available, ensuring uninterrupted work without unnecessary downtime.

Join our satisfied customers and enjoy efficient, reliable operation for many years.

We ship our goods Worldwide!

➡️ Customer Reviews

✴️ "Amazing. Solid, robust, with a replaceable drill tip. Guarantees 100% satisfaction. Highly recommend."

✴️ "One of the most reasonable expenses of my life. With the right technique, I split logs with a diameter of 90 cm."

✴️ "The splitter is very well-made and performs excellently, easily handling stumps up to 40 cm in diameter, so I recommend the purchase."

✴️ "Top-level craftsmanship, assembled the whole set, tested it, and put the axe aside."

✴️ "Super quality and workmanship. Very well packed and secured."

➡️ FAQ - Frequently Asked Questions

❓ 1. When to choose a left-hand thread shaft and when a right-hand one?

• Select a left-hand thread if the circular saw blade rotates clockwise (when viewed from the nut side).
• Select a right-hand thread if the circular saw blade rotates counterclockwise (when viewed from the nut side).

This way, the nut will tighten itself, preventing loosening during operation.

❓ 2. What should be the linear speed of the circular saw blade?

The recommended linear speed for circular saw blades for wood cutting depends on the type of wood (dry or fresh) and the specification of the blade itself. Generally accepted values are as follows:

1. Cutting dry wood:Linear speed: from 50 m/s to 100 m/sHigher speeds (closer to 100 m/s) are preferred for larger diameter saws and more precise cuts. This facilitates achieving a smooth cut surface and increases work efficiency.
2. Cutting fresh (wet) wood:Linear speed: from 40 m/s to 70 m/sSpeeds are somewhat lower because fresh wood is softer and more adhesive. Working at a lower speed reduces the risk of jamming, heating, and blade clogging with resin and moisture.

These speeds may vary depending on the machine type, blade material, number of teeth, and tooth shape. It is also essential to follow the blades' and machine's manufacturers' recommendations to ensure safe and efficient cutting.

❓ 3. How to select pulleys for a saw bench?

Depending on the diameter of the circular saw blade (including recommended rotations) and the electric motor's rotations - the wheel configuration may vary. Below are a few of the most popular configurations for an average linear speed of 55m/s:

Motor 1440 rpm:

• Saw 200mm 5250rpm / Recommended pulleys (Saw Bench/Motor): 90/330 mm or 80/300 mm
• Saw 300mm 3500rpm / Recommended pulleys (Saw Bench/Motor): 90/220 mm or 80/200 mm
• Saw 400mm 2630rpm / Recommended pulleys (Saw Bench/Motor): 90/160 mm or 80/150 mm
• Saw 500mm 2100rpm / Recommended pulleys (Saw Bench/Motor): 90/130 mm or 80/120 mm
• Saw 600mm 1750rpm / Recommended pulleys (Saw Bench/Motor): 90/110 mm or 80/100 mm
• Saw 700mm 1500rpm / Recommended pulleys (Saw Bench/Motor): 90/90 mm or 80/80 mm

Motor 2880 rpm:

• Saw 200mm 5000rpm / Recommended pulleys (Saw Bench/Motor): 80/150 mm or 90/160 mm
• Saw 300mm 3300rpm / Recommended pulleys (Saw Bench/Motor): 80/100 mm or 90/110 mm
• Saw 400mm 2500rpm / Recommended pulleys (Saw Bench/Motor): 90/80 mm or 100/90 mm
• Saw 500mm 2000rpm / Recommended pulleys (Saw Bench/Motor): 110/80 mm or 120/90 mm
• Saw 600mm 1700rpm / Recommended pulleys (Saw Bench/Motor): 130/80 mm or 150/90 mm
• Saw 700mm 1400rpm / Recommended pulleys (Saw Bench/Motor): 150/80 mm or 170/90 mm

To find the right pulley in our offer - Click on "All items of the seller" and type into the search engine for example "2X17-090-28" (where: 2X17 refers to two 17mm belts, 090 refers to the wheel diameter, 28 refers to the shaft diameter). In our offer, you will find pulleys: 2x13mm or 2x17mm with diameters from 60-200mm.

If you're unsure - we are happy to help select the right set.

➡️ Additional Information

We have all the parts needed to build a circular saw / saw bench in continuous sale, including:

• Shafts: 250 / 300 / 350 / 400 / 450 / 500 mm
• Pulleys: 60 / 70 / 80 / 90 / 100 / 110 / 120 / 130 / 140 / 150 / 160 / 170 / 180 / 190 / 200 / 250 mm
• Bearings
• Clamps
• Nuts
• Circular saw blades
• Accessories

❗WE PROVIDE CONSTANT ACCESS TO SPARE PARTS❗
