RMT-050B-2N-KS cutting mechanism / 2-knife roller chipper / 100mm auger / 250mm flywheel
In a set
Cutting mechanism for a chipper with 2 knives / with a flywheel 250mm / with an auger 100mm / RMT-050B-2N
Model: RMT-050B-2N-KS

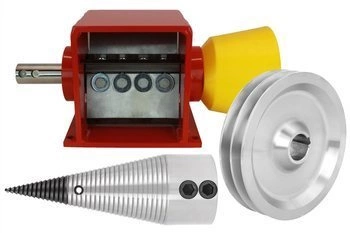

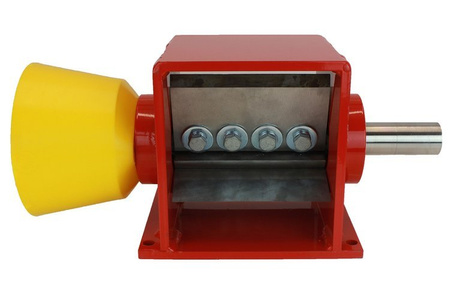

The subject of sale is a solid RMT-050B-2N cutting mechanism with 2 knives, in a set with a 250mm flywheel and a 100mm auger - designed for the construction of a chipper driven by a pulley or from a tractor through a PTO power transmission shaft. The set is based on a solid and durable housing with built-in 6308 bearings, has an output for a 40B type auger with a diameter of 40mm, an output for a 35mm diameter pulley and a 10mm wedge, additionally secured with a seger and an output for a standard power transmission shaft used in agricultural tractors, i.e. 6 teeth, 1 and 3/8 inch. The mechanism is equipped with a 250mm pulley / flywheel and a wood auger (with a replaceable pin tip) with a diameter of 100mm. The cutting mechanism is designed to cut wood with a maximum diameter of 5 cm. For the 100mm drill bit, you can buy a cap increasing its diameter to 170mm. The auger is equipped with a replaceable tip, which is secured with a solid expansion bolt, so that the tip will not fall out when changing turns to the opposite.
The presented set has been developed on the basis of many years of experience and made entirely in our company from high-quality materials, using modern numerical machines and technologies - which guarantees failure-free operation for many years.
What are the advantages of our product:
What are the advantages of our product:
- The structure is based on welded steel sheet with a thickness of 10mm,
- Hardened cutting knives made of HARDOX steel.
- We offer the highest quality products with a written 24-month warranty!
- All parts are made in our company by POLISH employees under strict quality control - by purchasing our set you support the Polish economy.
- Very good value for money.
- Thousands of satisfied customers WORLDWIDE!
TECHNICAL DATA
Cutting mechanism:
- Max. cutting diameter: 55mm
- Cutting length (4 knives): 5-10 cm
- Cutting length (2 knives): 10-25cm
- Recommended power: 15KM
- HARDOX wear resistant steel knives
- Knife clearance at the base: 0.2mm
- Bearings used: 6308ZZ
- Bearing housing: STEEL !!
- Exit for the pulley / flywheel: 35mm
- PTO output: 6 tines, 1 and 3/8 inch
- Auger output: 40mm
- Case thickness: 10mm
- Housing base: 250mm x 200mm
- Housing base - hole spacing: 230mm x 160mm
- Housing base - hole diameter: fi 13mm
- PTO shaft guard
Use with a mechanical clutch: 800Nm or less
Auger with replaceable tip (pinned):
[S100K2-40B]
- Material type: Experimentally selected high-strength CHROME STEEL
- PROPERLY HARDENED TIP - which guarantees its high durability and longevity
- Auger diameter: fi 100mm
- Auger length: 280mm
- Working part length: 220mm
- The diameter of the hole for the shaft: 40mm
- Attaching the auger with the shaft: two M16 bolts, which guarantees correct operation in both directions
- A deep, left-hand thread of a saw-shaped auger that allows it to screw freely into the wood
- The tip is blocked with an expansion pin with a diameter of 12mm! thanks to which the appropriate strength of the connection is maintained
- Replaceable tips available in continuous sale!
- Recommended drill speed: 400-600 rpm
COMPONENTS OF THE AUGER:
Auger body (1):
[K-S100K2-40B]
- Body length: 190mm
- Length of the working part of the body: 130mm
- Attaching the replaceable tip: 12mm expansion pin !!
Replaceable tip:
[SWK2]
- Material type: Experimentally selected high-strength CHROME STEEL
- PROPERLY HARDENED TIP - which guarantees its high durability and longevity
- Tip length: 115mm
- Length of the working part of the tip: 90mm
- Mounting in the body: 12mm expansion pin !!
- Tips available in continuous sale
Pulley:
[K2X17-250-35-K10-13K]
- ROBUST STEEL PULLEY - we do not sell fragile cast iron pulleys!
- Diameter: fi 250mm
- The diameter of the hole for the shaft: 35mm
- The hole for the wedge (keyway): 10mm
- For V-belts: 2X17mm
- FLYWHEEL
- Weight: 13 kg
Warranty 24 months
For our products we grant
24 MONTH WARRANTY !
