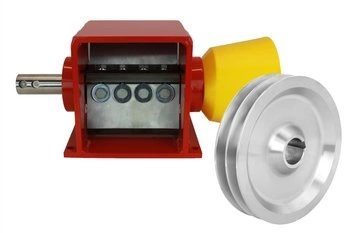

RMT-050B-4N-K cutting mechanism / 4-knife roller chipper / 250mm flywheel
RMT-050B-4N-K cutting mechanism / 4-knife roller chipper / 250mm flywheel
RMT-050B-4N-K cutting mechanism / 4-knife roller chipper / 250mm flywheel
RMT-050B-4N-K cutting mechanism / 4-knife roller chipper / 250mm flywheel
RMT-050B-4N-K cutting mechanism / 4-knife roller chipper / 250mm flywheel
RMT-050B-4N-K cutting mechanism / 4-knife roller chipper / 250mm flywheel
RMT-050B-4N-K cutting mechanism / 4-knife roller chipper / 250mm flywheel
RMT-050B-4N-K cutting mechanism / 4-knife roller chipper / 250mm flywheel
RMT-050B-4N-K cutting mechanism / 4-knife roller chipper / 250mm flywheel
RMT-050B-2N cutting mechanism / 2-knife roller chipper
Pulley/flywheel 13kg SPB 2X17mm fi 250mm / 35mm

RMT-050B-4N-K cutting mechanism / 4-knife roller chipper / 250mm flywheel

Number of knives
Pulley
Auger
List price449,00 $
515,00 $(Discount 12% buying as a set)
449,00 $
/ pcs. gross
Product on order
Product on order
30 days for free returns
This product is not available in a stationary store
Safe shopping

In a set

Cutting knife 180mm (B)
Cutting knife 180mm (B) (2 pcs.)
29,00 $ / pcs.
Set of screws with washer for 180mm knife (B)
Set of screws with washer for 180mm knife (B) (2 pcs.)
5,00 $ / pcs.
Pulley/flywheel 13kg SPB 2X17mm fi 250mm / 35mm
Pulley/flywheel 13kg SPB 2X17mm fi 250mm / 35mm (1 pcs.)
187,00 $ / pcs.

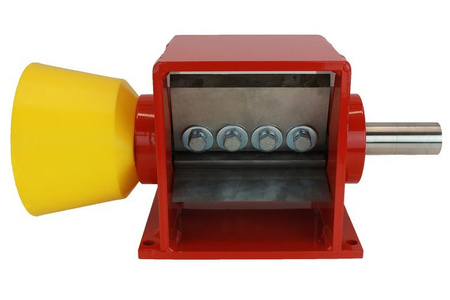

Cutting mechanism for chipper with 4 knives / with 250mm flywheel / RMT-050B-4N

Model: RMT-050B-4N-K

The subject of sale is a solid RMT-050B-4N cutting mechanism with 4 knives, in a set with a 250mm flywheel - intended for the construction of a chipper driven by a pulley or from a tractor through a PTO power transmission shaft. The set is based on a solid and durable housing with built-in 6308 type bearings, has an output for a 40B type auger with a diameter of 40mm, an output for a 35mm diameter pulley and a 10mm wedge, additionally secured with a seger and an output for a standard power transmission shaft used in agricultural tractors, i.e. 6 teeth, 1 and 3/8 inch. The mowing mechanism is equipped with a 250mm pulley / flywheel. Additionally, it can be equipped with a wood auger (with a replaceable pinned tip) with a diameter of 100mm. The cutting mechanism is designed to cut wood with a maximum diameter of 5 cm.
Mechanizm tnący do rębaka z 4 nożami / z kołem zamachowym 250mm / ze świdrem 100mm / RMT-050-4N - forsplit.pl

The presented set has been developed on the basis of many years of experience and made entirely in our company from high-quality materials, using modern numerical machines and technologies - which guarantees failure-free operation for many years.

What are the advantages of our product:
  • The structure is based on welded steel sheet with a thickness of 10mm,
  • Hardened cutting knives made of HARDOX steel.
  • We offer the highest quality products with a written 24-month warranty!
  • All parts are made in our company by POLISH employees under strict quality control - by purchasing our set you support the Polish economy.
  • Very good value for money.
  • Thousands of satisfied customers WORLDWIDE!
TECHNICAL DATA

Cutting mechanism:

 - forsplit.pl  - forsplit.pl
  • Max. cutting diameter: 55mm
  • Cutting length (4 knives): 5-10 cm
  • Cutting length (2 knives): 10-25cm
  • Recommended power: 15KM
  • HARDOX wear resistant steel knives
  • Knife clearance at the base: 0.2mm
  • Bearings used: 6308ZZ
  • Bearing housing: STEEL !!
  • Exit for the pulley / flywheel: 35mm
  • PTO output: 6 tines, 1 and 3/8 inch
  • Auger output: 40mm
  • Case thickness: 10mm
  • Housing base: 250mm x 200mm
  • Housing base - hole spacing: 230mm x 160mm
  • Housing base - hole diameter: fi 13mm
  • PTO shaft guard

Pulley:

[K2X17-250-35-K10-13K]

K2X17-250-35-K10-13K
  • ROBUST STEEL PULLEY - we do not sell fragile cast iron pulleys!
  • Diameter: fi 250mm
  • The diameter of the hole for the shaft: 35mm
  • The hole for the wedge (keyway): 10mm
  • For V-belts: 2X17mm
  • FLYWHEEL
  • Weight: 13 kg
Symbol
RMT-050B-4N-K
Number of knives
4
Warranty 24 months
Warranty 24 months
