Model: ZWK2U-080K2

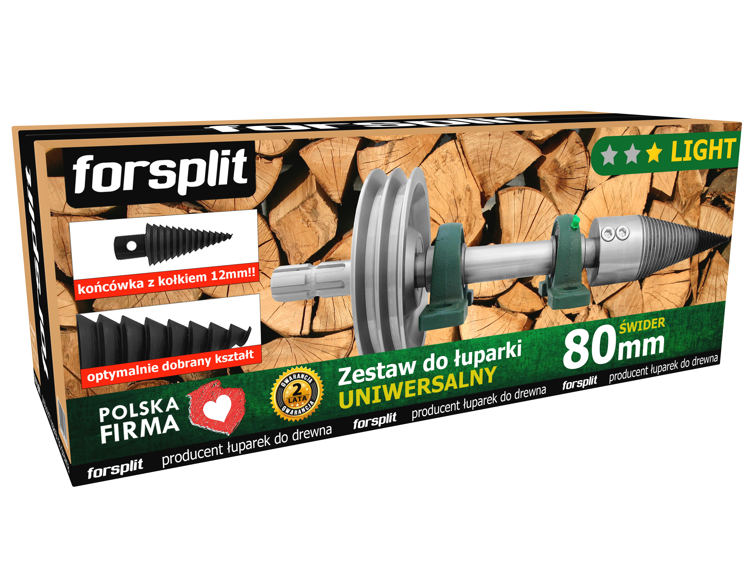

Kit ZWK2U-080K2 with the pulley is designed to build screw log splitter powered by electric motor, gasoline engine or via the tractor power transmission shaft PTO. The kit is based on two self-aligning bearings type UCP207, the cone is attached to the shaft with output type 35A with 35mm diameter, the pulley is mounted on a shaft at 35mm diameter, blocked by wedge 10mm and additionally secured from the back of the socket head screw. It has a standard power transfer shaft used in agricultural tractors, 6 teeth, 1 and 3/8 inch. The kit comes with auger for wood (with replaceable tip locked by pin) with 80mm diameter which is commonly used for the construction of a typical log splitters for home use. Set containing this cone is the best solution for more demanding customers splitting large blocks of wood with a diameter more to 30cm. For this cone you can buy a cap increasing its diameter to 125mm or 150mm. Cone is equipped with a replaceable tip which is secured by a solid pin, so that the tip will not fall out when changing rotation on the contrary.
Presented kit was developed based on many years of experience and made entirely in our company with high quality materials, using modern numerical machines and technology - which ensures trouble-free operation for many years.
What are the advantages of our product:
What are the advantages of our product:
- The design was based on the self-aligning bearings that allow adaptation to an uneven base.
- We offer the highest quality products with 24 months Guarantee!
- You are buying directly from EUROPEAN MANUFACTURER!
- Specialized design of cone, allows to smooth and rapid crashing into the wood.
- The tip of the cone is subjected to professional heat treatment which maximizes its durability and longevity!
- All parts are made in our company, by EUROPEAN employees under strict quality control - by buying our kit you support the our economy.
- Very good value for money.
- Thousands of satisfied customers WORLDWIDE!
TECHNICAL DATA
Auger with replaceable tip (dowels):
[S080K2-35A]
- Grade of material: experimentally chosen chrome steel with high-strength
- PROPERLY HARDENED TIP - which guarantees its high durability and longevity
- Auger diameter: 80mm
- The length of the auger: 230mm
- The length of the working part: 175mm
- The diameter of the hole for the shaft: 35mm
- Mounting the auger on shaft: two screws M12, which ensures correct operation in both directions
- A deep left-hand thread of the auger with a sharp shape ensures easy screwdriving in wood
- The tip is blocked by pin with 12mm diameter!, making the connection very strong
- Wymienne końcówki dostępne w ciągłej sprzedaży!
- Recommended auger speed: 400-600 rev/min
COMPONENTS OF THE AUGER:
The auger body (1):
[K-S080K2-35A]
- The length of the body: 140mm
- The length of the working part of the body: 85mm
- Mounting exchangeable tip: spring pin 12mm!!
Exchangeable tip:
[SWK2]
- Grade of material: experimentally chosen chrome steel with high-strength
- PROPERLY HARDENED TIP - which guarantees its high durability and longevity
- The length of the tip: 115mm
- The length of the working part of the tip: 90mm
- Mounting in body: spring pin 12mm!!
- Tips are available in the continuous sale
Base kit:
[ZWK2U]
- Hole spacing: 141mm x 127mm
Self-aligning bearing:
[UCP207]
- The diameter of the hole for the shaft: 35mm
- Bearing height: 93mm
- Base - width: 48mm
- Base - Length: 167mm
- Base - height: 47,6mm
- Base - hole spacing: 127mm (adjustable 3mm)
- Base - diameter of the holes: fi 17mm
Shaft:
[WWK2U]
- Grade of material: experimentally chosen chrome steel with high-strength
- The length of the shaft: 410mm
- The diameter for the bearings: fi 35mm
- The diameter for the auger: fi 35mm
- Holes for the auger mounting screws: 2x fi 12mm
- The diameter for the pulley: 35mm
- Output for PTO: 6 teeth, 1 and 3/8 inch
Pulley:
[K2X17-200-35-K10]
- SOLID STEEL PULLEY - we do not sell fragile pulleys made of cast iron!
- Diameter: fi 200mm
- The diameter of the hole for the shaft: fi 35mm
- Hole for a wedge (keyway): 10mm
- For belts: 2X17mm
FREQUENTLY ASKED QUESTIONS
Brand
Symbol
ZWK2U-080K2
Producer code
5907532401068
Warranty
Auger type
with replaceable tip (pinned)
Auger diameterMore
The outer diameter of the auger measured in mm.
80mm
Kit type
universal
Kit version
LIGHT
Warranty 24 months
