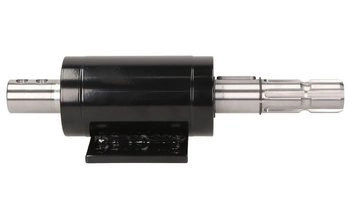

HUB WITH UNIVERSAL SHAFT for pulley and tractor (SET ZWK2P)
Model: ZWK2P
The sale product is a solid base kit ZWK2P designed to build screw log splitter powered by pulley or tractor through the power transfer shaft. The kit is based on a solid and robust hub with integrated bearings type 6207, has end for cone type 35A with 35mm diameter, end for pulley 35mm diameter and wedge 10mm, additionally protected from the back of the socket head screw and the output for standard power transfer shaft used in agricultural tractors, 6 teeth, 1 and 3/8 inch. End for auger with 35mm diameter is a typical size for standard log splitter.
Presented kit was developed based on many years of experience and made entirely in our company with high quality materials, using modern numerical machines and technology - which ensures trouble-free operation for many years.
What are the advantages of our product:
What are the advantages of our product:
- The design of the hub was made of a pipe and tested SOLID bearings, which ensures its maximum RELIABILITY.
- We offer the highest quality products with 24 months Guarantee!
- You are buying directly from EUROPEAN MANUFACTURER!
- Specialized design of cone, allows to smooth and rapid crashing into the wood.
- The tip of the cone is subjected to professional heat treatment which maximizes its durability and longevity!
- All parts are made in our company, by EUROPEAN employees under strict quality control - by buying our kit you support the our economy.
- Very good value for money.
- Thousands of satisfied customers WORLDWIDE!
TECHNICAL DATA
Base kit:
[ZWK2P]
Hub:
[PA6207]
- The length of the hub: 150mm with built-in two solid bearings
- The diameter of the hub: fi 82mm
- Hub basis: 120mm x 100mm
- Hub basis - hole spacing: 95mm x 75mm
- Hub basis - hole diameter: fi 10,5mm
Shaft:
[WWK2P]
- Grade of material: experimentally chosen chrome steel with high-strength
- The length of the shaft: 337mm
- The diameter for the bearings: fi 35mm
- The diameter for the auger: fi 35mm
- Holes for the auger mounting screws: 2x fi 12mm
- The diameter for the pulley: 35mm
- Output for PTO: 6 teeth, 1 and 3/8 inch
FREQUENTLY ASKED QUESTIONS
Warranty 24 months
For our products we grant
24 MONTH WARRANTY !
Ask a question
Write your opinion
Size | Shaft mount | Shaft bore diameter |
---|---|---|
W35A | 2 screw 12mm | 35mm |
